vLoc3 A-Frame

vLoc3 A-Frame for precise sheath fault location

The vLoc3 A-Frame from VIVAX Metrotech is a dedicated accessory for accurately locating ground and insulation faults on underground pipelines and cables. It is designed for detecting coating faults on metallic pipelines as well as cable sheath faults, enabling fast and reliable fault location.

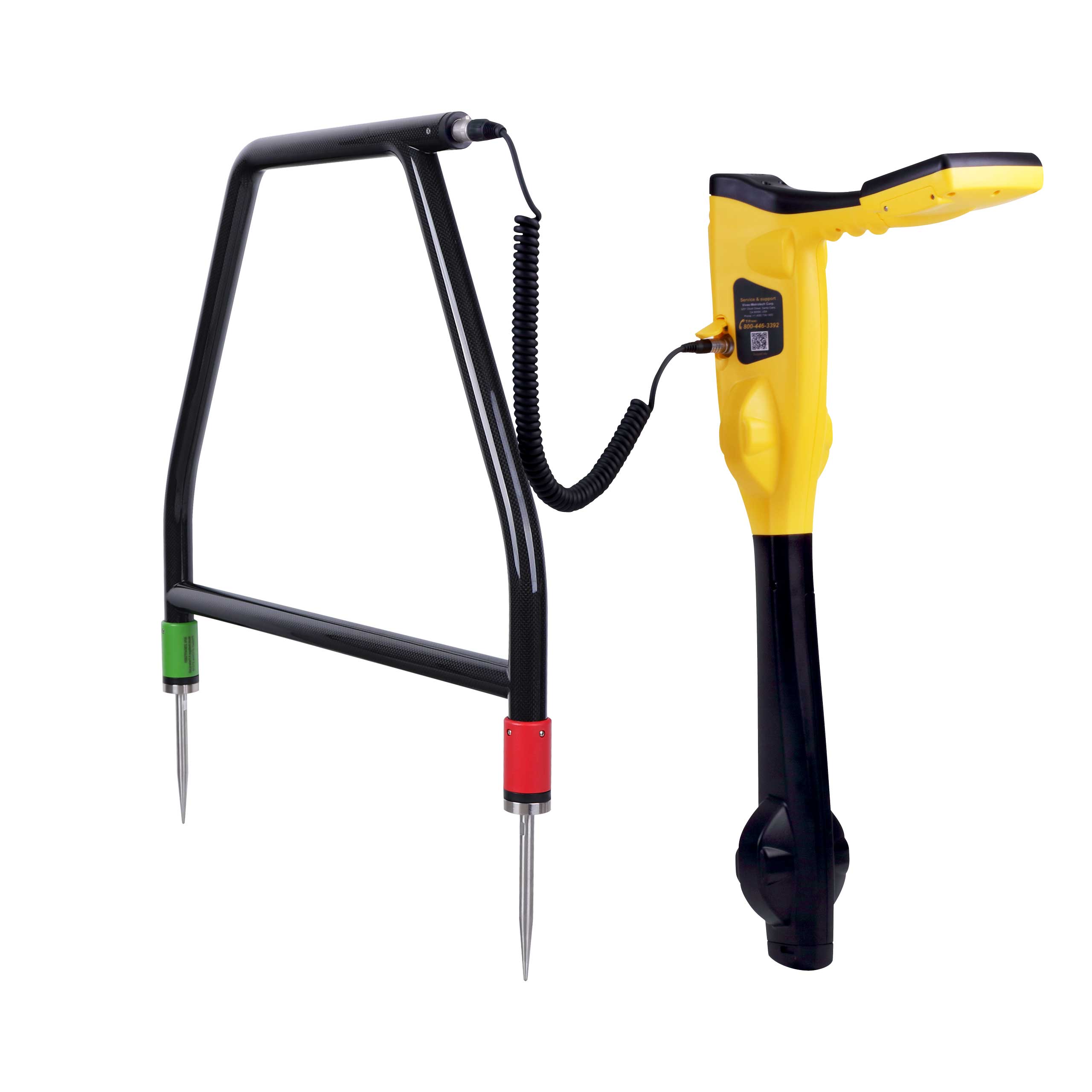

The A-Frame simply connects to a compatible vLoc3 receiver. Once attached, the receiver automatically detects the accessory and switches to Fault Find mode. Power is supplied directly by the receiver, eliminating the need for a separate battery.

Your benefits at a glance

• Accurate location of cable sheath faults
• Ideal for detecting coating faults on pipelines
• Receiver automatically switches to Fault Find mode
• Simple plug-and-play connection with compatible vLoc3 receivers
• Powered directly by the receiver
• Robust design for professional field use

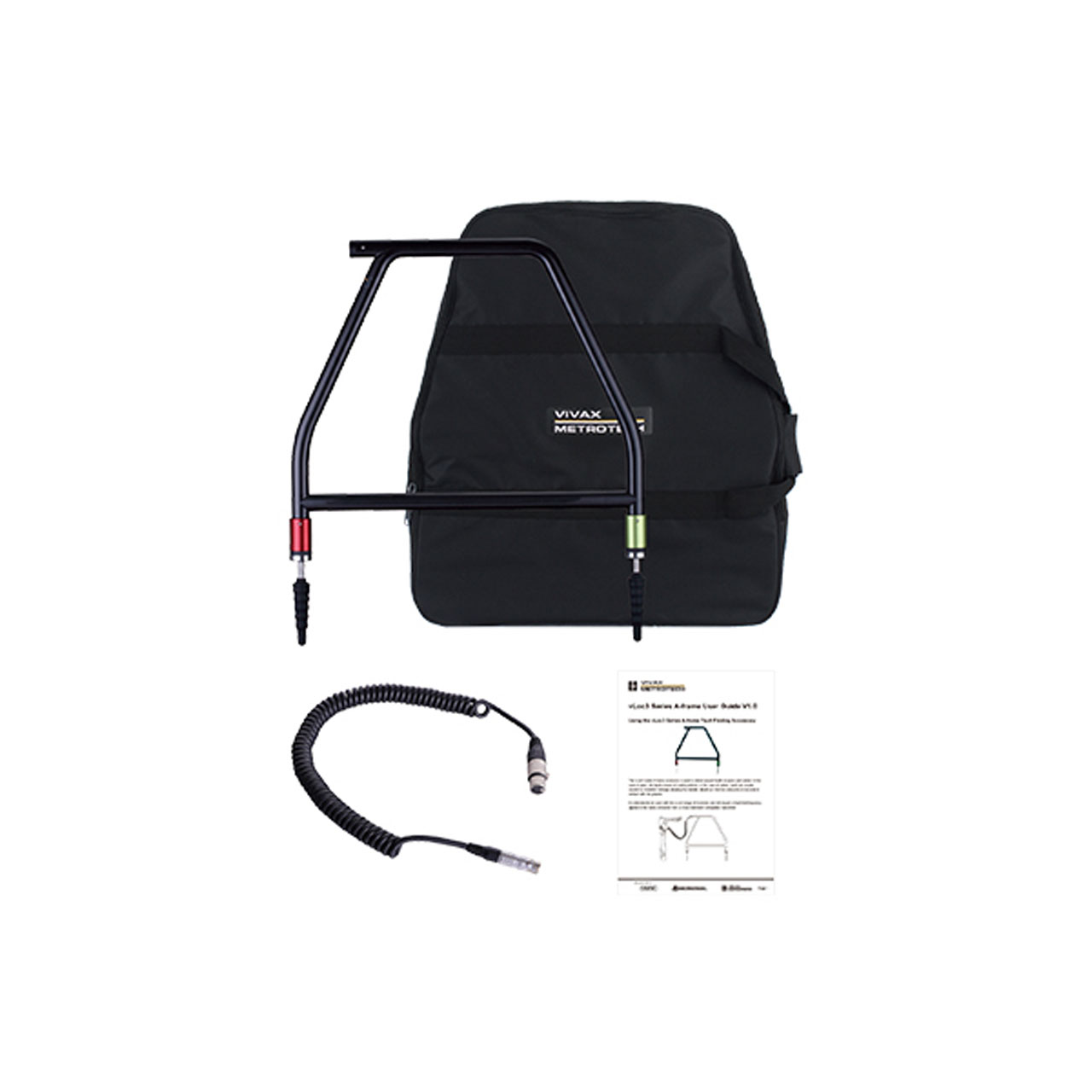

• Supplied with a practical carrying case

Applications

The vLoc3 A-Frame is used together with a compatible VIVAX Metrotech transmitter and a vLoc3 receiver for fault finding applications. It enables precise location of cable insulation and sheath faults as well as coating faults on metallic pipelines, allowing repair work to be carried out quickly and efficiently.
