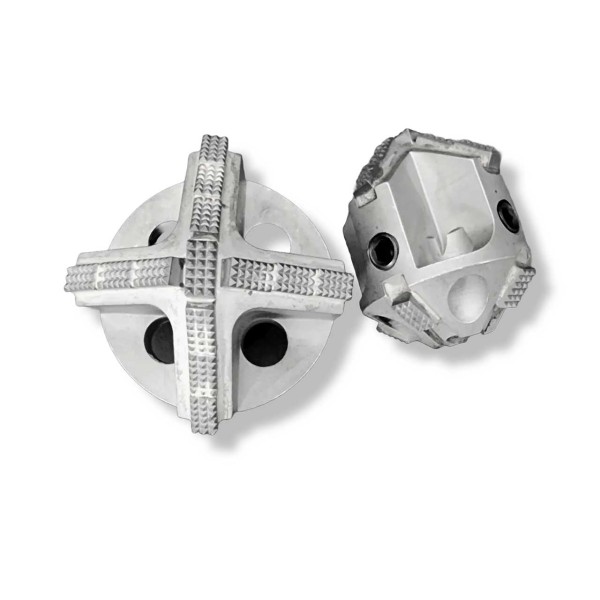

Croco milling head with carbide for PVC, metal and ceramic pipe, for 8mm to 12mm shaft

The Croco milling head is our most aggressive cutting head. It grinds through solid blockages quickly, removes tree roots and is suited to reinstating junctions after relining.

Two mounting directions

A bore runs through the centre of the milling head, allowing the flexible shaft to pass through it in two directions:

• Shaft inserted from the back: the head cuts forwards when you push the shaft.
• Shaft inserted from the front: the head cuts forwards when you pull the shaft.

The cutting edges sit at the front and rear of the head, so it works in both directions. Once an obstruction has been penetrated, the milling head keeps grinding material on the return stroke – which speeds up the work considerably.

Suitable for PVC

The carbide cutting edges are located only at the front and rear of the head. Cutting performance is maintained while contact with the pipe wall stays low, which is why the milling head is also suitable for PVC pipes.

Roots

The milling head grinds up large roots and fine, hair-like roots faster than a chain, because nothing can get trapped between chain links.

Combining with other tools

You can combine the milling head with the circular chain or with a chain knocker without a drill head, covering a wide range of tasks.

Sizes

• 30mm: for 8mm, 10mm and 12mm shaft
• 40mm: for 8mm, 10mm and 12mm shaft
• 50mm: for 10mm and 12mm shaft

The number of carbide panels depends on the size you choose.

Technical data

• Diameter: 30mm, 40mm, 50mm
• Fits shafts: 8mm, 10mm, 12mm
• Cutting elements: carbide at the front and rear
• Pipe materials: PVC, metal, ceramic

Applications

• Clearing blockages
• Removing tree roots
• Reinstating junctions after relining

Please note that we make no claim to manufacture original parts for any of the brands named above.

Points to note

These products are intended for use by trained professionals in the drain cleaning trade. If you need help using them, please get in touch with us.

Product images may differ in colour and design depending on the size and diameter ordered.
